Engineered for Excellence in Hemodynamics.
Efficient Operation. Designed for Mobility.

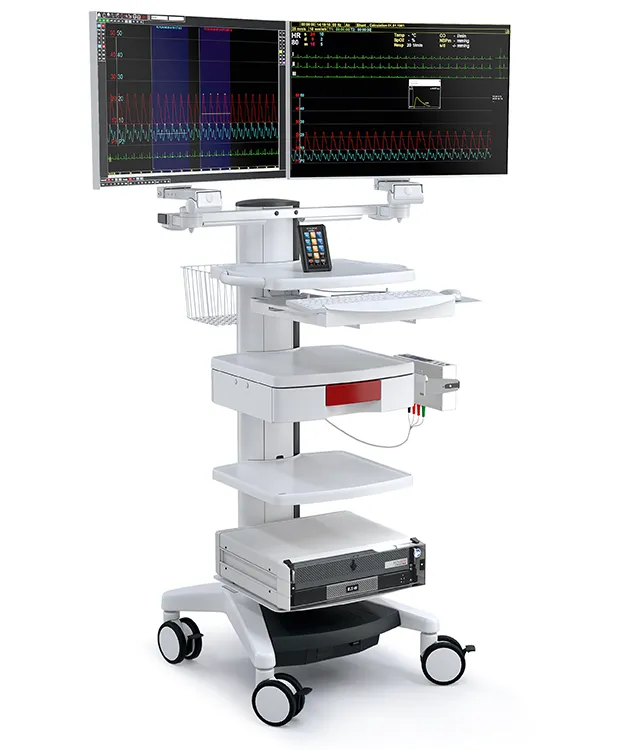

The evolution ProCart is a mobile hemodynamic system combining smart mobility, ergonomic design and comprehensive hemodynamic capabilities in one compact platform. Designed for flexible use across different clinical environments, it supports efficient workflows in cardiac catheterization.
Precise hemodynamic measurements and comprehensive analysis provide essential information throughout the procedure, while the ergonomic dual-monitor configuration and intuitive Smart Keyboard enable comfortable and efficient system operation.
Reliable system performance combined with smart mobility and intuitive control makes the evolution ProCart a versatile hemodynamic solution for the modern cath lab.
Smart. Precise. Reliable.
Advanced hemodynamic recording
From routine vital signs to advanced hemodynamic measurements, evolution delivers all essential patient parameters in one intuitive platform.
- Invasive blood pressures
- 12- lead ECG
- Non-invasive blood pressure
- SpO2
- Cardiac output (Thermodilution and Fick)
- Temperature
- Respiratory rate
- Calculation and visualization of shunts, stenosis, valve areas
- FFR (integrable or third-party solutions)
Integrated Data Management
Centralize patient data, waveforms and reports in one intuitive system for seamless documentation and long-term data accessibility.
- Full disclosure files
- Capture and store waveforms
- Report (stored data, analysis, and waves)
- Interfaces to Information Systems
Comprehensive features for different clinical need
Designed for modern catheterization laboratories, evolution delivers the flexibility and functionality required for a wide range of clinical applications.
- Natal and paediatric measurements
- Extendable to EP
PB-3000
19“ PC (64bit, Windows 10 IoT)
IT components
- 2 × 24“ TFT monitors
- disinfectable keyboard
- disinfectable mouse
- 19“ PC (64bit, Windows 10 IoT)
Cabeling
- 12 – lead ECG cable
- X-ray translucent extension cable

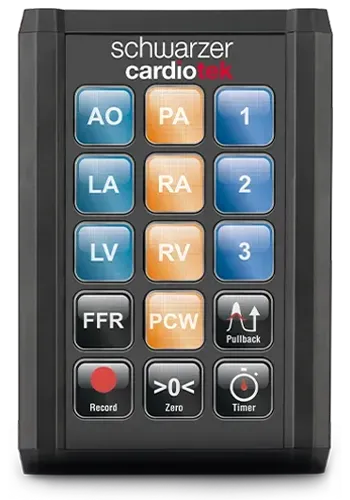

Smart Keyboard
evolution simplifies complex hemodynamic procedures. The intuitive user interface and Smart Keyboard with one-touch operation ensure a fast, precise and efficient workflow.
Intuitive icons make the software’s key functions instantly understandable, allowing every user to operate the system with minimal training.
- Intuitive user interface
- One-touch operation
- Minimal learning curve
Leonardo da Vinci
The hemodynamic measuring system
| Integrable Amplifier | Size: 240 × 125 × 52 (mm) Weight: 920 g |
| Surface ECGs | Number of Inputs: 10 Sampling rate: 500 Hz Leads: I, II, III, aVL, aVR, aVF, V1–V6 QRS amplitude: 0.15 … 10 mV |
| Invasive blood pressure | Number of amplifiers: 4 channels Sampling rate: 500 Hz Display scales 10, 25, 50, 100, 200, 400 mmHg |
| Analog Outputs | Number of outputs: 2 outputs Signal range: +/- 5 V QRS trigger: 1 – 25V; max delay 35 ms |
| Amplifier Options Cardiac Output |
Sampling rate: 250 Hz Resolution: 0.01 l/min Measurement method: Thermodilution and/or Fick |
| SpO₂ | Measurement range: 0–100% Resolution: 1% |
| NiBP | SYS: 25 to 290 mmHg DIA: 15 to 250 mmHg Resolution: 1 mmHg |
|
Standards |
EN IEC 60601-1:2006 + A1:2013 + A2:2021 EN IEC 60601-2-27:2014 EN IEC 60601-2-34:2014 |
|
Patient safety |
Protection Class II, Applied Parts Type CF (according to IEC 60601-1) |
|
Certification |
evolution ProCart is a combination of CE certified medical devices to form a medical system in accordance with Art. 22 MDR. |
Notice: Content may be subject to change.
More Hemodynamics Products

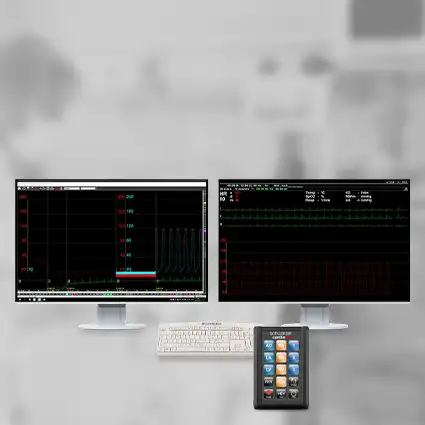

evolution
The hemodynamic monitoring system for superior requirements.

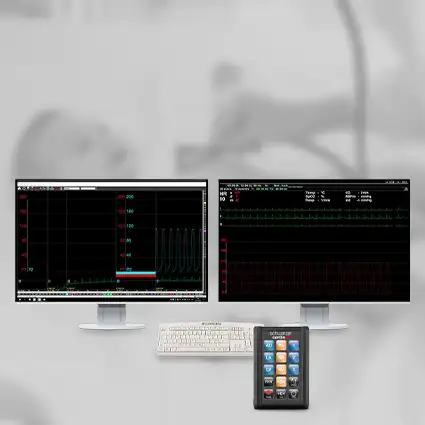

evolution natal
