Stationary EP recording system with built-in stimulator.
Seamless Integration. Designed for Performance.
The EP-TRACER® 2 Stationary is a comprehensive EP recording system designed for seamless integration into the modern EP lab, combining precise intracardiac signal recording with intuitive operation throughout the electrophysiology workflow. Synchronized high-resolution displays in the procedure and control rooms provide simultaneous access to real-time ECG and intracardiac signals throughout the EP procedure.
The smart system setup includes a compact amplifier positioned close to the patient table, connected to the control room via fiber-optic technology, along with an integrated stimulator and the dedicated Smart Keyboard — enabling efficient recording, stimulation, and system control within one streamlined workflow. Reliable system performance ensures consistent operation even during long and complex EP procedures, supporting dependable outcomes across the entire electrophysiology workflow.
Smart. Precise. Reliable.
Software
Designed to support efficient EP workflows, the EP-TRACER® 2 Stationary combines excellent signal quality, intuitive operation and seamless connectivity in one advanced EP recording system.
- Sharply defined intracardiac signals (either 20, 52 or 84 bipolar intracardiac channels)
- Connectivity to PFA, Cryo and RF generator
- Intuitive software interface for easy and efficient operation
- One-Touch control of key functions via the Smart Keyboard
- Three different viewing modes
- Invasive blood pressure display
- Export of calibrated signals (in mV)
- Review possibility
Integrated Stimulator
The EP-TRACER® 2 Stationary features a fully integrated stimulator designed to simplify stimulation and support an efficient procedural workflow.
- Built-in 2-channel stimulator
- Stimulate on any intracardiac channel with a single click
- No external wiring or additional equipment required
- Easily customizable stimulation protocols
- Designed to streamline the procedural workflow
CSP-Upgrade
With the optional CSP upgrade, dedicated technologies developed for Conduction System Pacing expand the system’s capabilities:
- User defined time measurement (LVAT)
- Current of Injury visualization (COI)
Documentation & Data Integration
For structured documentation and efficient patient data management, the EP-TRACER® 2 software offers a range of integrated features and interfaces:
- Advanced procedural documentation (Screenshots, recordings, log files and reports)
- Patient data management tool
- DICOM interface
Example of the EP-amplifier:

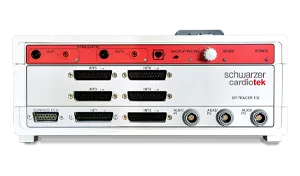

EP-TRACER® 2 102 (includes 84 bipolar intracardiac channels)
Catheter Connection Box (CCB) 4
Catheter Connection Box (CCB) 5
Catheter Connection Box (CCB) 6

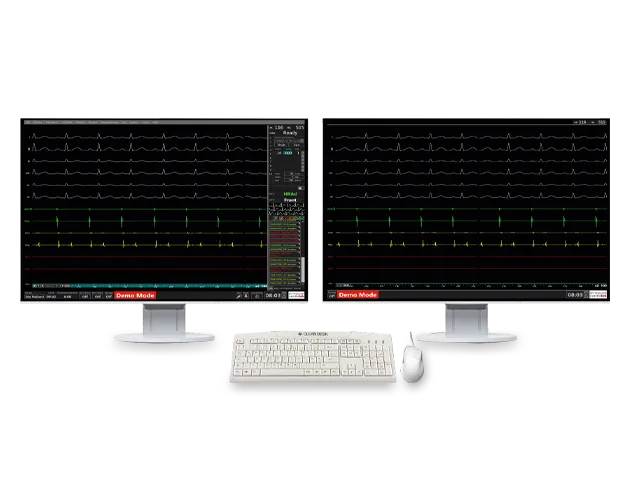

EP-TRACER® 2 Stationary
- PC system (Windows 10 IoT, 64bit)
- Isolation transformer, approx. 500VA
- 2 × 24″ monitors
- Smart Keyboard
EP-amplifier
- 20, 52 or 84 intracardiac channels
- Catheter connection boxes (Input mode: bipolar or unipolar)
- 12 surface ECG channels
- 6 auxiliary channels, e.g. for the invasive measurement of blood pressure
- Integrated stimulator with 2 outputs
- Filter set with EP-TRACER® 2 70 and 102
Cabeling
- Cable for catheter connection box (approx. 3 m)
- 12 – lead ECG cable
- X-ray translucent extension cable
Software EP-TRACER® 2
- Recording software
- Instruction manual
- Review software
- Dongle license key
EP-TRACER® 2 Stationary is designed to simplify electrophysiology procedures. The intuitive user interface and Smart Keyboard with one-touch operation enable smart, efficient control throughout the procedure.
Intuitive icons make the software’s key functions instantly understandable and, allowing every user to operate the system with minimal learning curve.
- Intuitive user interface
- One-touch operation
- Minimal learning curve
Leonardo da Vinci
Smart Keyboard for EP-procedures
Fully-integrated stimulator
| Medical device directive (93/42/EEC) | Class IIb |
| Intracardiac channels | 20/52/84 |
| Sampling rate | 1 kHz per channel |
| Catheter connection box | CCB4/CCB5/CCB6/CCB 8 (CSP option) Input modes: bipolar and unipolar |
| ECG channels | Electrode connections: R, L, F, N, C1-C6 Leads I, II, III, aVL, aVR, aVF C1-C6 Calibration equivalent to 1 mV |
| Additional channels | 6 AUX channels Connections: 3 × 9 pin REDEL (2 channels per connection) Input mode: bipolar |
| Current leakage | < 50 μA |
| Back-up stimulation mode | 60 beats per min at Out1-Out2 current = 8 mA (Out1) current = 4 mA (Out2) pulse width = 2 msec |
| Stimulator | Current 0.5 – 25.5mA (customizable) Minimum increment 0.5 mA |
| Analog/digital converter | Resolution: 12 bit (20 bit dynamic) Bit weight: 0.1 – 2.5 μV/ LSB |
| Computer operating system | Windows 10 IoT, 64bit |
| Monitors
PC |
2 × 24″ high resolution
4 video outputs |
| Applicable standards | EN 60601-1 EN 60601-1-2 EN 60601-1-6 EN 60601-2-27 EN 60601-2-34 EN 62366 EN 62304 |
| Patient safety | Safety class I, type CF according to IEC 60601-1; Patient connections protected against the effects of defilbrillation impulses |
| Dimensions (h × w × d) EP-TRACER® 2 38/70/102 |
60 × 280 × 270 mm / 110 × 290 × 260 mm / 110 × 290 × 260 mm |
| Weight EP-TRACER® 2 38/70/102 |
approx. 2.2 kg / 3.3 kg / 3.8 kg |
| Monitors | approx. 10.6 kg |
| Labelling only for EP-TRACER® 2 medical device |
CE 0197 |
Notice: The EP-TRACER® Stationary version is sold as a system pack while the main device, EP-TRACER®, is a CE marked medical device of class IIb. Content may be subject to change.
