Portable EP recording system with built-in stimulator.
Compact Configuration. Designed for Flexibility.
The EP-TRACER® 2 Portable is a compact, portable EP recording system designed for modern electrophysiology, combining high-resolution signal recording with intuitive EP software in one portable solution. The smart system configuration brings together an integrated stimulator, an intuitive user interface, and the dedicated Smart Keyboard within one EP platform.
Precise intracardiac signal recording delivers the signal quality needed for confident clinical assessment during EP procedures. This precision is matched by reliable system performance, supporting consistent operation across a wide range of electrophysiology procedures. Built as a suitcase solution with minimal space requirements, the EP-TRACER® 2 Portable enables flexible use across different electrophysiology environments, and can be connected to an external monitor for enhanced signal visualization.
Smart. Precise. Reliable.
Software
Designed to support efficient EP workflows, the EP-TRACER® 2 Portable combines high-fidelity signal quality, intuitive operation and seamless connectivity in one advanced EP recording system.
- Sharply defined intracardiac signals (either 20, 52 or 84 bipolar intracardiac channels)
- Connectivity to PFA, Cryo and RF generator
- Intuitive software interface for easy and efficient operation
- One-Touch control of key functions via the Smart Keyboard
- Three different viewing modes
- Invasive blood pressure display
- Export of calibrated signals (in mV)
- Review possibility
Integrated Stimulator
The EP-TRACER® 2 Portable features a fully integrated stimulator designed to simplify stimulation and support an efficient procedural workflow.
- Built-in 2-channel stimulator
- Stimulate on any intracardiac channel with a single click
- No external wiring or additional equipment required
- Easily customizable stimulation protocols
- Designed to streamline the procedural workflow
CSP-Upgrade
With the optional CSP upgrade, dedicated technologies developed for Conduction System Pacing expand the system’s capabilities:
- User defined time measurement (LVAT)
- Display of Current of Injury (COI)
Documentation & Data Integration
For structured documentation and efficient patient data management, the EP-TRACER® 2 software offers a range of integrated features and interfaces:
- Advanced procedural documentation (Screenshots, recordings, log files and reports)
- Patient data management tool
- DICOM interface
Example of the EP-amplifier:

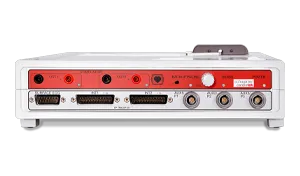

EP-TRACER® 2 38 (includes 20 bipolar intracardiac channels)
Catheter Connection Box (CCB) 4
Catheter Connection Box (CCB) 5
(only for EP-TRACER® 2 70 and 102)
Catheter Connection Box (CCB) 6

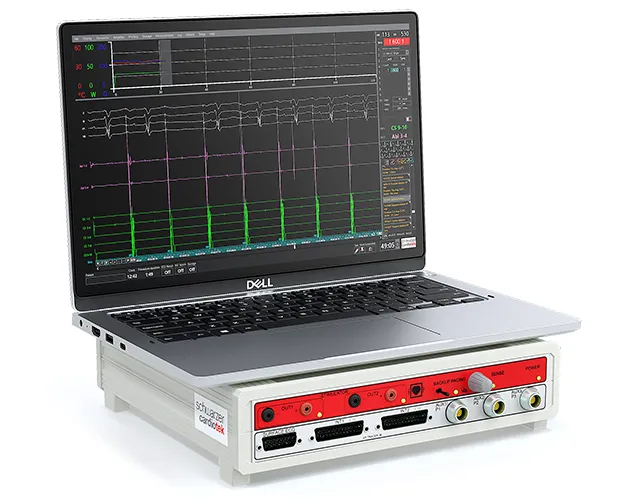

EP-TRACER® 2 Portable
- Laptop (Windows 10 IoT, 64bit)
- Smart Keyboard (optional)
EP-amplifier
- 20, 52 or 84 intracardiac channels
- Catheter connection boxes (Input mode: bipolar or unipolar)
- 12 surface ECG channels
- 6 auxiliary channels, e.g. for the invasive measurement of blood pressure
- Integrated stimulator with 2 outputs
- Filter set with EP-TRACER® 2 70 and 102
- Isolated power supply
Cabeling
- Cable for catheter connection box (approx. 3 m)
- 12 – lead ECG cable
- X-ray translucent extension cable
Software EP-TRACER® 2
- Recording software
- Instruction for use
- Review software
- Dongle license key
EP-TRACER® 2 Portable is designed to simplify electrophysiology procedures. The intuitive user interface and Smart Keyboard with one-touch operation enable smart, efficient control throughout the procedure.
Intuitive icons make the software’s key functions instantly understandable and, allowing every user to operate the system with minimal learning curve.
- Intuitive user interface
- One-touch operation
- Minimal learning curve
Leonardo da Vinci
Smart Keyboard for EP-procedures
Fully-integrated stimulator
| Medical device directive (93/42/EEC) | Class IIb |
| Intracardiac channels | 20/52/84 |
| Sampling rate | 1 kHz per channel |
| Catheter connection box | CCB4/CCB5/CCB6/CCB8 (CSP option) Input modes: bipolar and unipolar |
| ECG channels | Electrode connections: R, L, F, N, C1-C6 Leads I, II, III, aVL, aVR, aVF C1-C6 Calibration equivalent to 1 mV |
| Additional channels | 6 AUX channels Connections: 3 × 9 pin REDEL (2 channels per connection) Input mode: bipolar |
| Current leakage | < 50 μA |
| Back-up stimulation mode | 60 beats per min at Out1-Out2 current = 8 mA (Out1) current = 4 mA (Out2) pulse width = 2 msec |
| Stimulator | Current 0.5 – 25.5mA (customizable) Minimum increment 0.5 mA |
| Analog/digital converter | Resolution: 12 bit Bit weight: 1,25μV/ LSB Sample rate: 1000 samples/sec. per channel |
| Computer operating system | Windows 10 IoT, 64bit |
| Applicable standards | EN 60601-1 EN 60601-1-2 EN 60601-1-6 EN 60601-2-27 EN 60601-2-34 EN 62366 EN 62304 |
| Patient safety | Safety class I, type CF according to IEC 60601-1; Patient connections protected against the effects of defilbrillation impulses |
| Dimensions (h × w × d) Portable system in aluminium suitcase |
150 × 460 × 370 mm |
| EP-TRACER® 2 38/70/102 | 60 × 280 × 270 mm / 110 × 290 × 260 mm / 110 × 290 × 260 mm |
| Weight Portable system in aluminium suitcase * |
approx. 10 kg |
| EP-TRACER® 2 38/70/102 | approx. 2.2 kg / 3.3 kg / 3.8 kg |
| Labelling only for EP-TRACER® 2 medical device |
CE 0197 |
Notice: The EP-TRACER® Portable version is sold as a system pack while the main device, EP-TRACER®, is a CE marked medical device of class IIb. Content may be subject to change. * only for EP-TRACER® 2 38
