Mobile EP recording system with built-in stimulator.
Ergonomic Operation. Designed for Mobility.
The EP-TRACER® 2 ProCart is a mobile EP recording system designed for modern electrophysiology, combining precise intracardiac signal recording with a flexible, cart-based platform. Its compact cart design and ergonomic dual-monitor setup allow flexible positioning across different electrophysiology environments.
The smart system configuration unifies an integrated stimulator, an intuitive user interface, and the dedicated Smart Keyboard within one EP platform, enabling efficient recording, stimulation, and system control in a single streamlined workflow. Precise, high-resolution intracardiac signal recording ensures the signal fidelity needed for confident clinical assessment throughout every procedure.
Reliable system performance supports consistent operation across a wide range of electrophysiology procedures. Together, smart configuration, precise signal recording, and reliable performance make the EP-TRACER® 2 ProCart a dependable mobile solution for efficient EP workflows.
Smart. Precise. Reliable.
Software
Designed to support efficient EP workflows, the EP-TRACER® 2 ProCart combines high-fidelity signal quality, intuitive operation and seamless connectivity in one advanced EP recording system.
- Sharply defined intracardiac signals (either 20, 52 or 84 bipolar intracardiac channels)
- Intuitive software interface for easy and efficient operation
- One-Touch control with the Smart Keyboard
- Connectivity to PFA, Cryo and RF generator
- Three different viewing modes
- Invasive blood pressure display
- Export of calibrated signals (in mV)
- Review possibility
Integrated Stimulator
The EP-TRACER® 2 ProCart features a fully integrated stimulator designed to simplify stimulation and support an efficient procedural workflow.
- Built-in 2-channel stimulator
- Stimulate on any intracardiac channel with a single click
- No external wiring or additional equipment required
- Easily customizable stimulation protocols
- Designed to streamline the procedural workflow
CSP-Upgrade
With the optional CSP upgrade, dedicated technologies developed for Conduction System Pacing expand the EP-TRACER® 2 ProCart capabilities:
- User defined time measurement (LVAT)
- Display of Current of Injury (COI)
Documentation & Data Integration
For structured documentation and efficient patient data management, the EP-TRACER® 2 software offers a range of integrated features and interfaces:
- Advanced procedural documentation (Screenshots, recordings, log files and reports)
- Patient data management tool
- DICOM interface

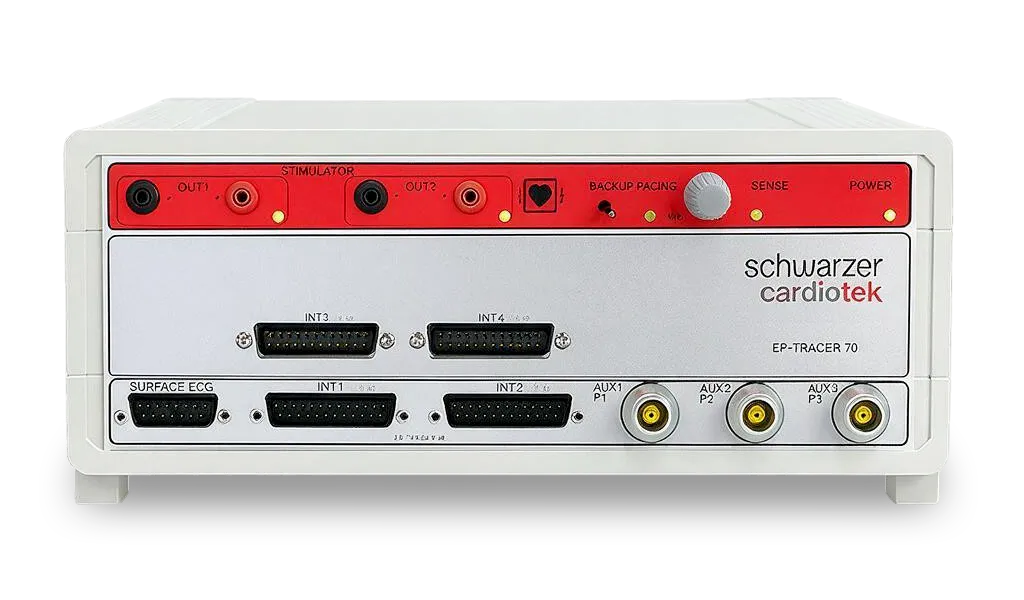

Example of the EP-amplifier:

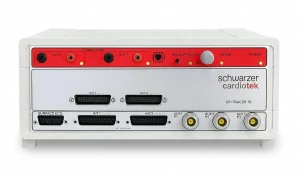

EP-TRACER® 2 70 (includes 52 bipolar intracardiac channels)
Catheter Connection Box (CCB) 4

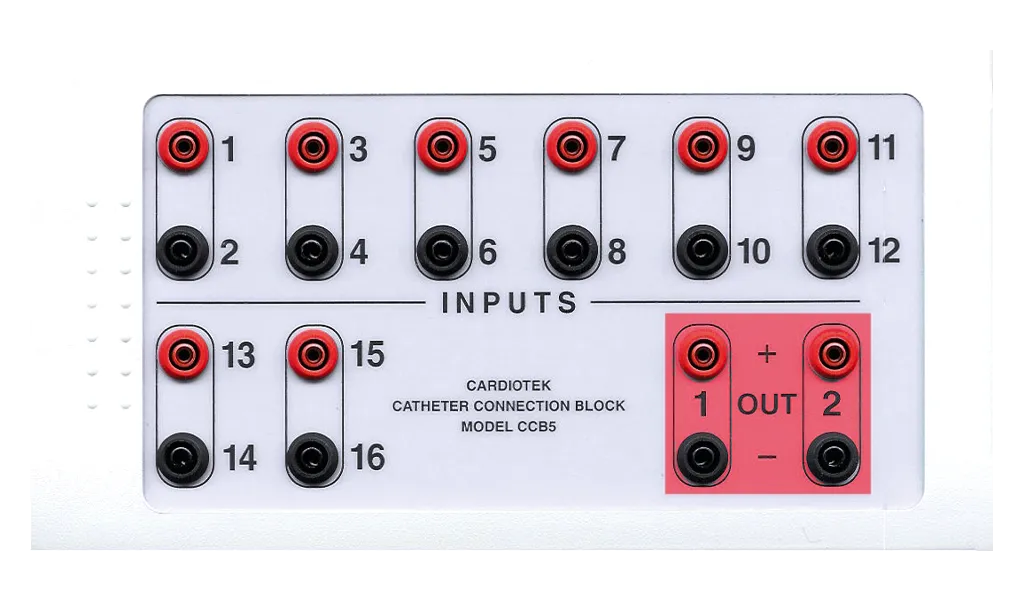

Catheter Connection Box (CCB) 5

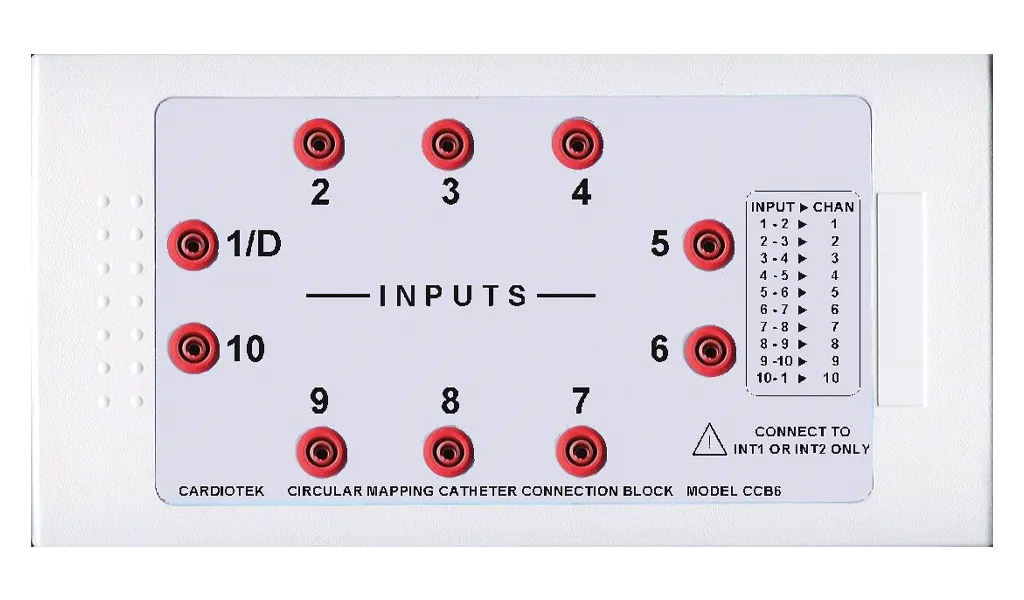

Catheter Connection Box (CCB) 6

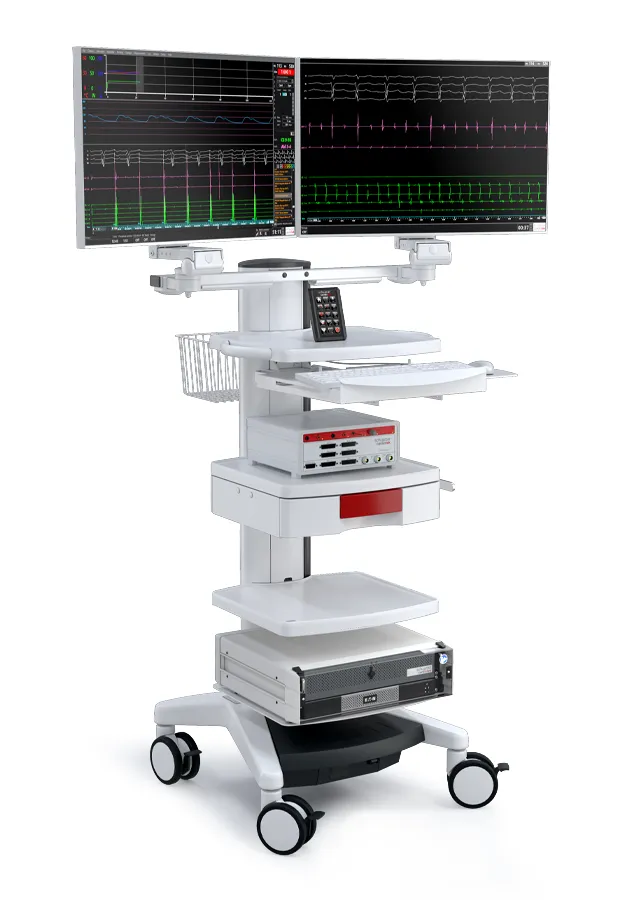

EP-TRACER® 2 ProCart
- Isolation transformer, approx. 1.600VA
- PC system (Windows 10 IoT, 64bit)
- 2 × 24″ monitors
- Smart Keyboard
EP-amplifier
- 20, 52 or 84 intracardiac channels
- Catheter Connection Boxes (Input mode: bipolar or unipolar)
- 12 surface ECG channels
- 6 auxiliary channels, e.g. for the invasive measurement of blood pressure
- Integrated stimulator with 2 outputs
- Filter set with EP-TRACER® 2 70 and 102
Cabeling
- Cable for catheter connection box (approx. 3 m)
- 12 – lead ECG cable
- X-ray translucent extension cable
Software EP-TRACER® 2
- Recording software
- Instruction manual
- Review software
- Dongle license key
EP-TRACER® 2 ProCart is designed to simplify electrophysiology procedures. The intuitive user interface and Smart Keyboard with one-touch operation enable smart, efficient control throughout the procedure.
Intuitive icons make the software’s key functions instantly understandable and, allowing every user to operate the system with minimal learning curve.
- Intuitive user interface
- One-touch operation
- Minimal learning curve
Leonardo da Vinci

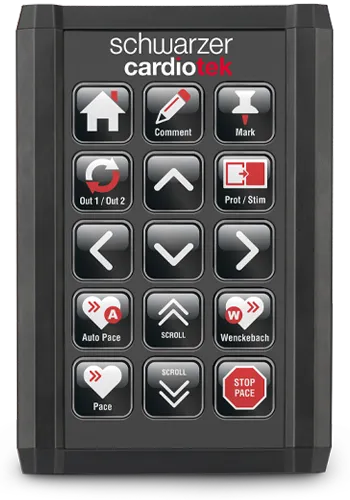

Smart Keyboard for EP-procedures
Fully-integrated stimulator
| Medical device directive (93/42/EEC) | Class IIb |
| Intracardiac channels | 20/52/84 |
| Sampling rate | 1 kHz per channel |
| Catheter connection box | CCB4/CCB5/CCB6/ CCB8 (CSP option) Input modes: bipolar and unipolar |
| ECG channels | Electrode connections: R, L, F, N, C1-C6 Leads I, II, III, aVL, aVR, aVF C1-C6 Calibration equivalent to 1 mV |
| Additional channels | 6 AUX channels Connections: 3 × 9 pin REDEL (2 channels per connection) Input mode: bipolar |
| Current leakage | < 50 μA |
| Back-up stimulation mode | 60 beats per min at Out1-Out2 current = 8 mA (Out1) current = 4 mA (Out2) pulse width = 2 msec |
| Stimulator | Current 0.5 – 25.5mA (customizable) Minimum increment 0.5 mA |
| Analog/digital converter | Resolution: 12 bit (20 bit dynamic) Bit weight: 1,25 μV/ LSB |
| Computer operating system | Windows 10 IoT, 64bit |
| Monitor
PC |
2 × 24″ high-resolution
4 video outputs |
| Applicable standards | EN 60601-1 EN 60601-1-2 EN 60601-1-6 EN 60601-2-27 EN 60601-2-34 EN 62366 EN 62304 |
| Patient safety | Safety class I, type CF according to IEC 60601-1; Patient connections protected against the effects of defilbrillation impulses |
| Dimensions (h × w × d) Portable system in aluminium suitcase |
1650 × 850 × 650 mm |
| EP-TRACER® 2 38/70/102 | 60 × 280 × 270 mm / 110 × 290 × 260 mm / 110 × 290 × 260 mm |
| Weight ProCart |
approx. 100 kg depending on the configuration |
| EP-TRACER® 2 38/70/102 | approx. 2.2 kg / 3.3 kg / 3.8 kg |
| Monitor | approx. 10.6 kg |
| Labelling only for EP-TRACER® 2 medical device |
CE 0197 |
Notice: The EP-TRACER® ProCart version is sold as a system pack while the main device, EP-TRACER®, is a CE marked medical device of class IIb. Content may be subject to change.
More Electrophysiology Products
EP-TRACER® 2 Portable
Portable EP recording system with built-in stimulator.
EP-TRACER® 2 Stationary
EP recording system with built-in stimulator.

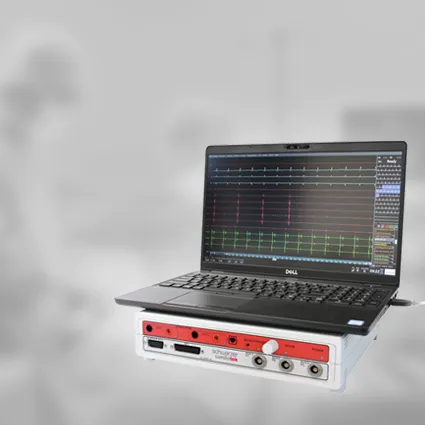

EP-TRACER® 2 for CSP-Procedures
