Portable EP recording system optimized for Conduction System Pacing.
Compact configuration. Designed for CSP.
The EP-TRACER® 2 for CSP combines precise intracardiac signal recording, an integrated stimulator, intuitive EP software, and a compact, portable design in one electrophysiology recording system for Conduction System Pacing (CSP).
Its smart system configuration and intuitive Smart Keyboard support flexible use and efficient operation. The simultaneous real-time display of the 12-lead ECG and intracardiac signals provides precise signal visualization and can be extended to an external monitor.
Dedicated CSP features include Current of Injury (COI) visualization and user-defined LVAT measurement for beat-by-beat assessment, supporting signal and lead assessment during Conduction System Pacing. With smart CSP features, precise signal visualization, and reliable system performance, the EP-TRACER® 2 CSP supports an efficient CSP workflow.
Designed for CSP
Dedicated CSP features within the EP-TRACER® 2 CSP support precise signal assessment and enable an efficient and streamlined implantation workflow:
- Sharply defined intracardiac signals (either 2 or 10 channels)
- Current of Injury (COI) visualization
- User defined time measurement (LVAT)
- One-touch control with the Smart Keyboard
- Three signal display modes
- Split-screen
- Invasive blood pressure display
Workflow Optimization
EP-TRACER® 2 CSP combines portability, fast setup and integrated functionality to support efficient workflows.
- Compact and fully portable EP system
- Ready for use in less than 5 minutes
- Ideal for standard implantation rooms or hybrid labs
- Improves lab utilization and increases procedural capacity
- Fully integrated stimulator for parallel use with PSA programmer
Integrated Stimulator
The EP-TRACER® 2 CSP features a fully integrated stimulator designed to simplify stimulation and support an efficient procedural workflow:
- Built-in 2-channel stimulator
- Stimulate on any intracardiac channel with a single click
- No external wiring or additional equipment required
- Easily customizable stimulation protocols
- Designed to streamline the procedural workflow
Documentation & Data Integration
For structured documentation and efficient patient data management, the EP-TRACER® 2 software offers a range of integrated features and interfaces:
- Advanced procedural documentation (Screenshots, recordings, log files and reports)
- Patient data management tool
- DICOM interface

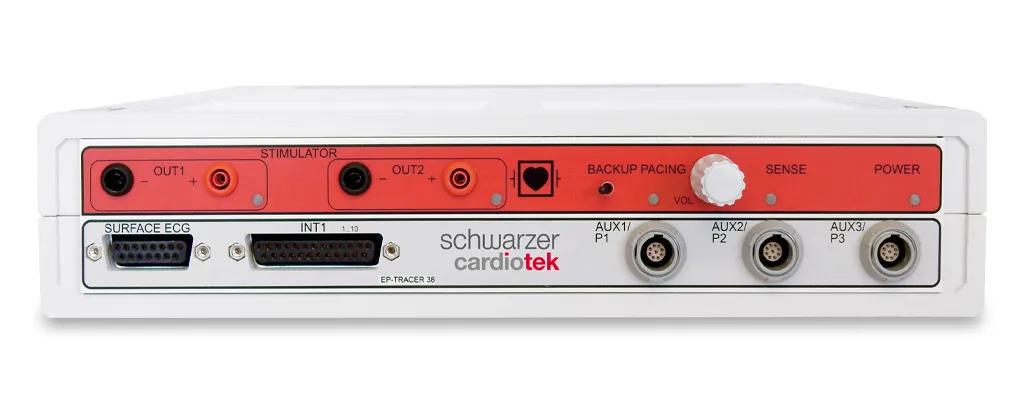

Example of the EP-amplifier:

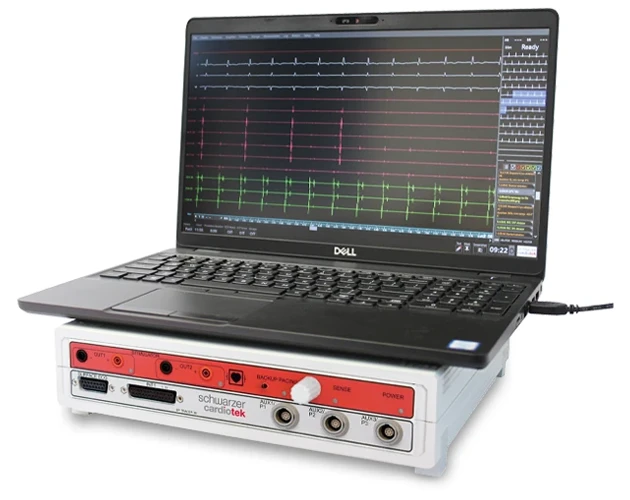

EP-TRACER® 2 for CSP

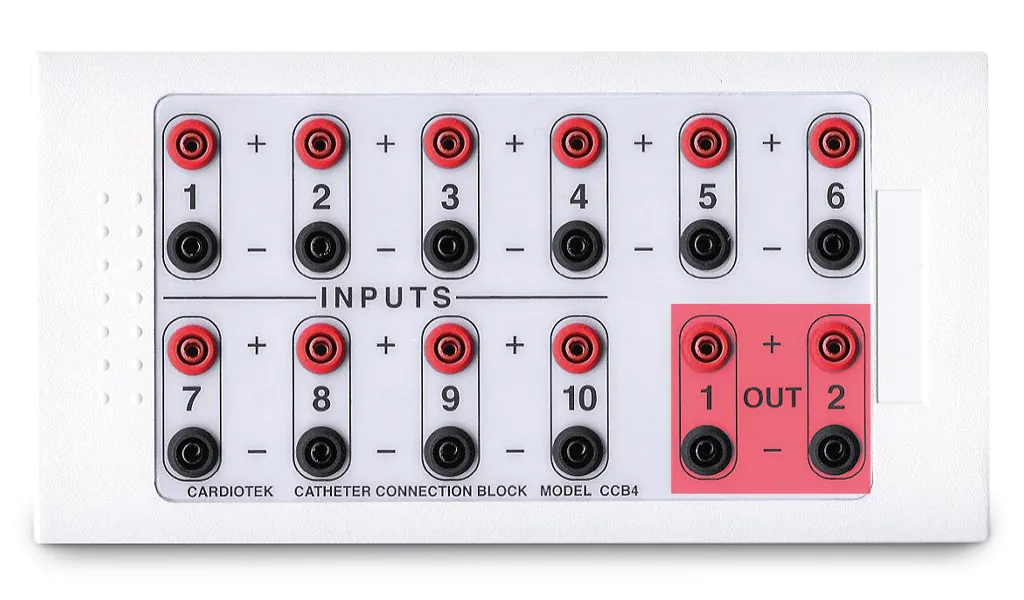

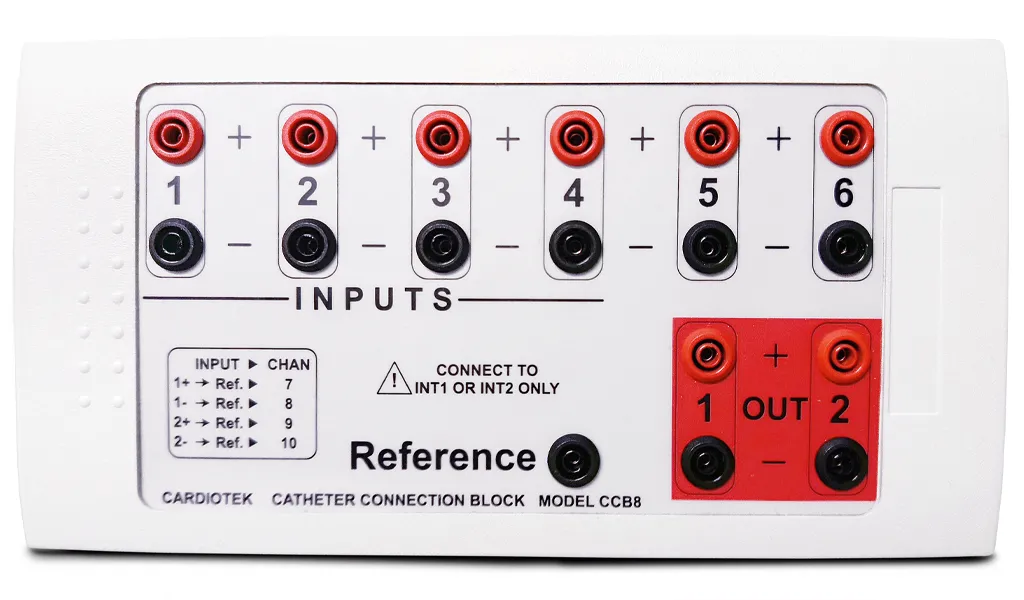

Catheter Connection Box (CCB) 8
Catheter Connection Box (CCB) 4 (optional)
EP-TRACER® 2
- Laptop (Windows 10 IoT, 64bit)
- Smart Keyboard (optional)

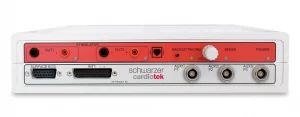

EP-amplifier
- 2 or 10 intracardiac channels
- Input mode: bipolar or unipolar
- Catheter Connection Boxes (CCB8 and CCB4 (optional))
- 12 surface ECG channels
- 3 pressure channels
- Integrated stimulator with 2 outputs
- Input mode: bipolar or unipolar
Cabeling
- Cable for catheter connection box (approx. 3 m)
- 12 – lead ECG cable
- X-ray translucent extension cable
Software EP-TRACER® 2
- Recording software
- Instruction of use
- Dongle license key
EP-TRACER® 2 CSP is designed to simplify conduction system pacing procedures. The intuitive user interface and Smart Keyboard with one-touch operation enable smart, efficient control throughout the procedure.
Intuitive icons make the software’s key functions instantly understandable and, allowing every user to operate the system with minimal learning curve.
- Intuitive user interface
- One-touch operation
- Minimal learning curve
Leonardo da Vinci

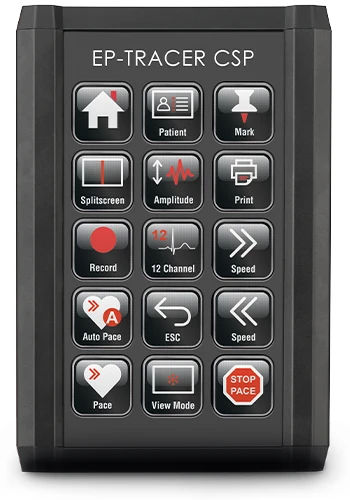

Smart Keyboard for CSP-procedures
Conduction System Pacing (CSP)-Procedures
| Medical device directive (93/42/EEC) | Class IIb |
| Intracardiac channels | 2 or 10 |
| Sampling rate | 1 kHz per channel |
| Catheter connection | CCB8/CCB4 (optional)
Input modes: bipolar and unipolar |
| 12 ECG channels | Leads I, II, III, aVL, aVR, aVF V1-V6 Calibration equivalent to 1 mV |
| Additional channels | 3 AUX channels Connections: 3 × 9 pin REDEL Input mode: bipolar |
| Current leakage | < 50 μA |
| Back-up stimulation mode | 60 beats per min at Out1-Out2 simultaneously; current = 8 mA (Out1), current = 4 mA (Out2), pulse width = 2 msec |
| Stimulator | Current 0 – 25.5mA (customizable) Minimum increment 0.5 mA Maximum output-voltage: 20 V |
| Analog/digital converter | Resolution: 12 bit (20 bit dynamic) Bit weight: 1.25 μV/ LSB |
| Computer operating system | Windows 10 IoT, 64bit |
| Applicable standards | EN 60601-1 EN 60601-1-2 EN 60601-1-6 EN 60601-2-27 EN 60601-2-34 EN 62366 EN 62304 |
| Patient safety | Safety class I, type CF according to IEC 60601-1; Patient connections protected against the effects of defilbrillation impulses |
| Dimensions (h × w × d) Portable system in aluminium suitcase |
150 × 460 × 370 mm |
| EP-TRACER® 38 | 60 × 280 × 270 mm |
| Weight Portable system in aluminium suitcase |
approx. 8 kg |
| EP-TRACER® 38 | approx. 2.2 kg |
| Labelling only for EP-TRACER® 38 medical device |
CE 0197 |
The EP-TRACER® Portable version is sold as system pack while the main device, EP-TRACER®, is a CE marked medical device of Class IIb.
Content may be subject to change
